MgO Board Composite Panels

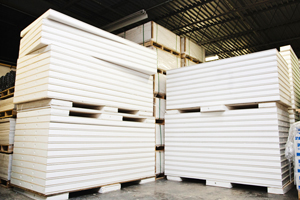

MgO Board composite panel is a high performance, engineered, structural, super insulated solid core wall component that is fire, moisture, mold and rot resistant. EPS insulation is structurally cured between two pieces of MgO board sheathing. This results in a wall component that is easy and economical to erect and finish thus creating high quality, durable building envelope walls, roofs, and floors that are highly efficient and cost effective.

Composite wall construction eliminates site labour costs related to framing, insulating, vapour barrier, sheathing, and adding drywall to the interior and building wrap – thus making overall cost very competitive when compared to conventional construction. The building cycles are shorter which makes building season longer making it ideal for winter construction.

Composite wall provides an effective rain screen eliminating the need for expensive EFIS (exterior finish insulation systems) that creates a better air seal and handle moisture.

Composite wall is comparatively economical with acrylic render system- that can be directly applied to the external surface of the wall. Internally panel’s joints need to be taped, filled and sealed.

Buildings have significantly lower operating costs – with heating and cooling bills of up to 60% less than a conventional building and up to 40% lesser cost of heating and cooling equipment used.

Composite panel is structural. Tests indicate that MgO panels are significantly stronger than other panels and have withstood hurricane conditions with conventionally built buildings failing under duress.

EPS Panels : EPS Wall Panel System is prefab manufacture of panels for construction of structural walls of reinforced concrete for buildings of single panel up to four stories (G+3), and theoretically applicable for unlimited stories in double paneling. The system is composed of a factory produced EPS Panel of corrugated (wave shape) polystyrene sheet covered both sides by an electro welded zinc coated square mesh. This is in turn connected by connectors realizing a three-dimensional hyper static reinforcement steel. The panels are then assembled on site and in situ poured concrete (double panel, floors, stairs) and shotcreted of concrete (single panel) to realize different elements of the system.

• Vertical structural walls
• Horizontal structural elements
• Cladding element
• Internal walls

EPS panels enable the construction of residential and industrial structures using a system that replaces the traditional reinforced concrete and masonry in both horizontal and vertical parts of the structure -roofing, walling or flooring. The major advantages of the EPS panel system are fast forwarding of construction process and stages, making it highly economical and viable. This makes the said structural building a superior product in most aspects when compared to a construction using traditional methods.

Speed of construction evolves as a dominant prerequisite when the demand and supply projections of the country are to be considered. The EPS panels have the following characteristics that make it advantageous as a new construction material and technology.

Advantages of MgO Board Composite Panels :

• Low in weight but High in load-bearing capacity
• Effective Sound insulation
• Fire and heat insulation
• Crash and earthquake resistant
• Absolute water and vapor resistant
• Air-tight for controlled environments
• Long life, low maintenance
• Lightweight, fast, precise and economic construction
